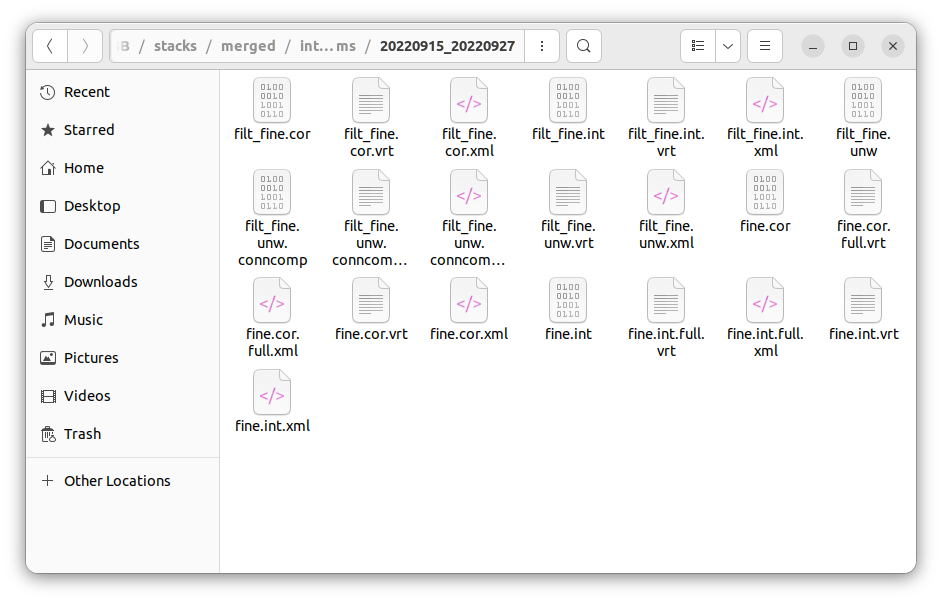

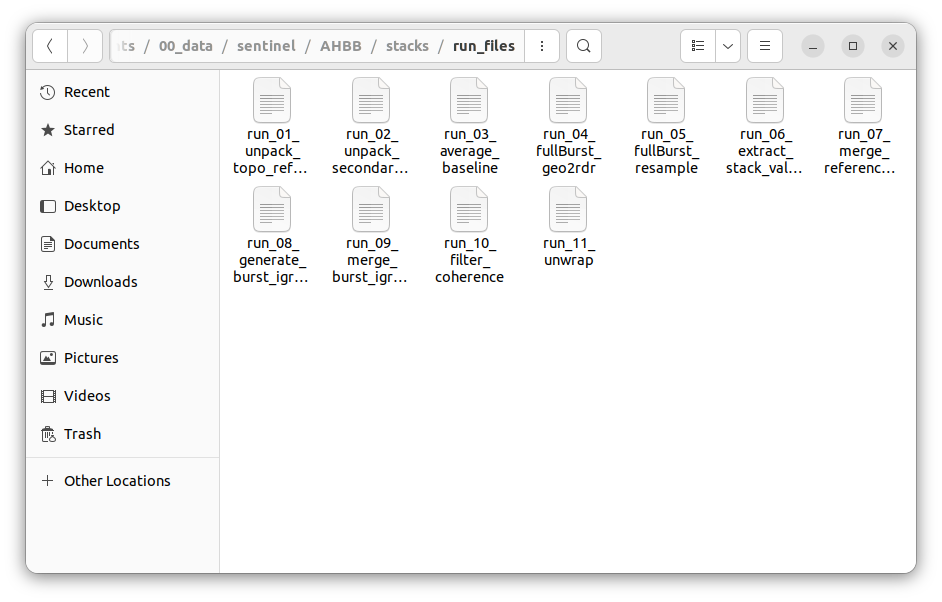

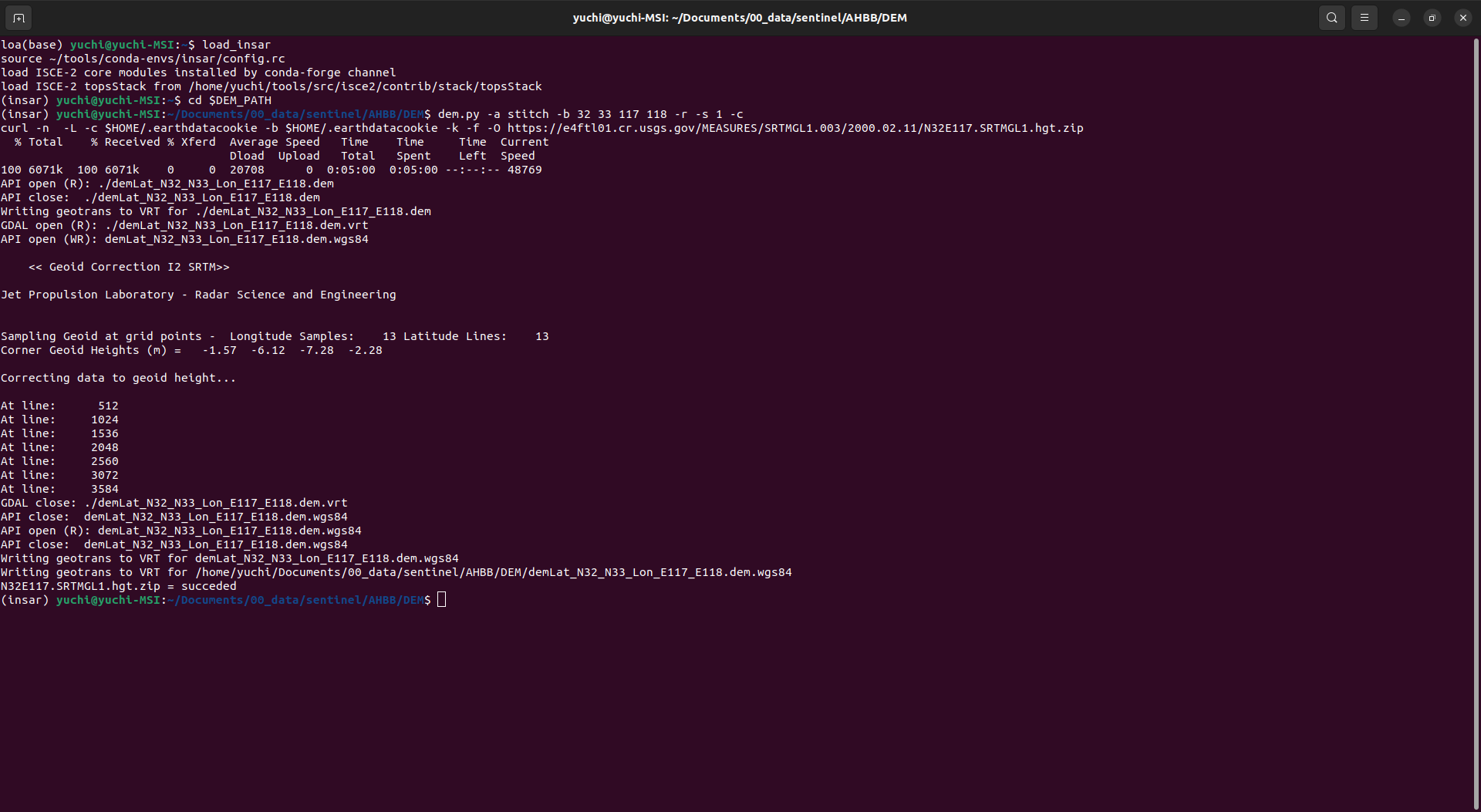

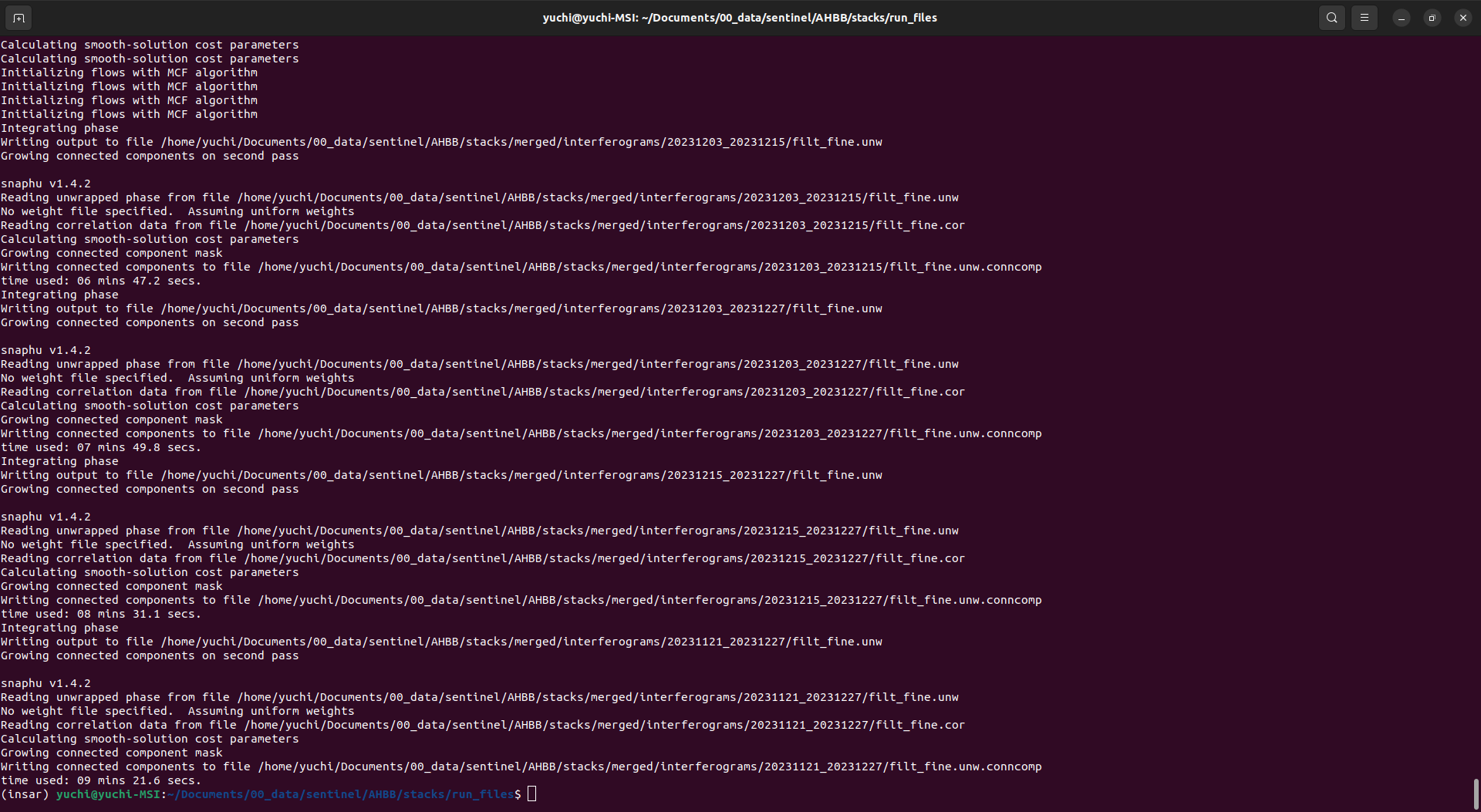

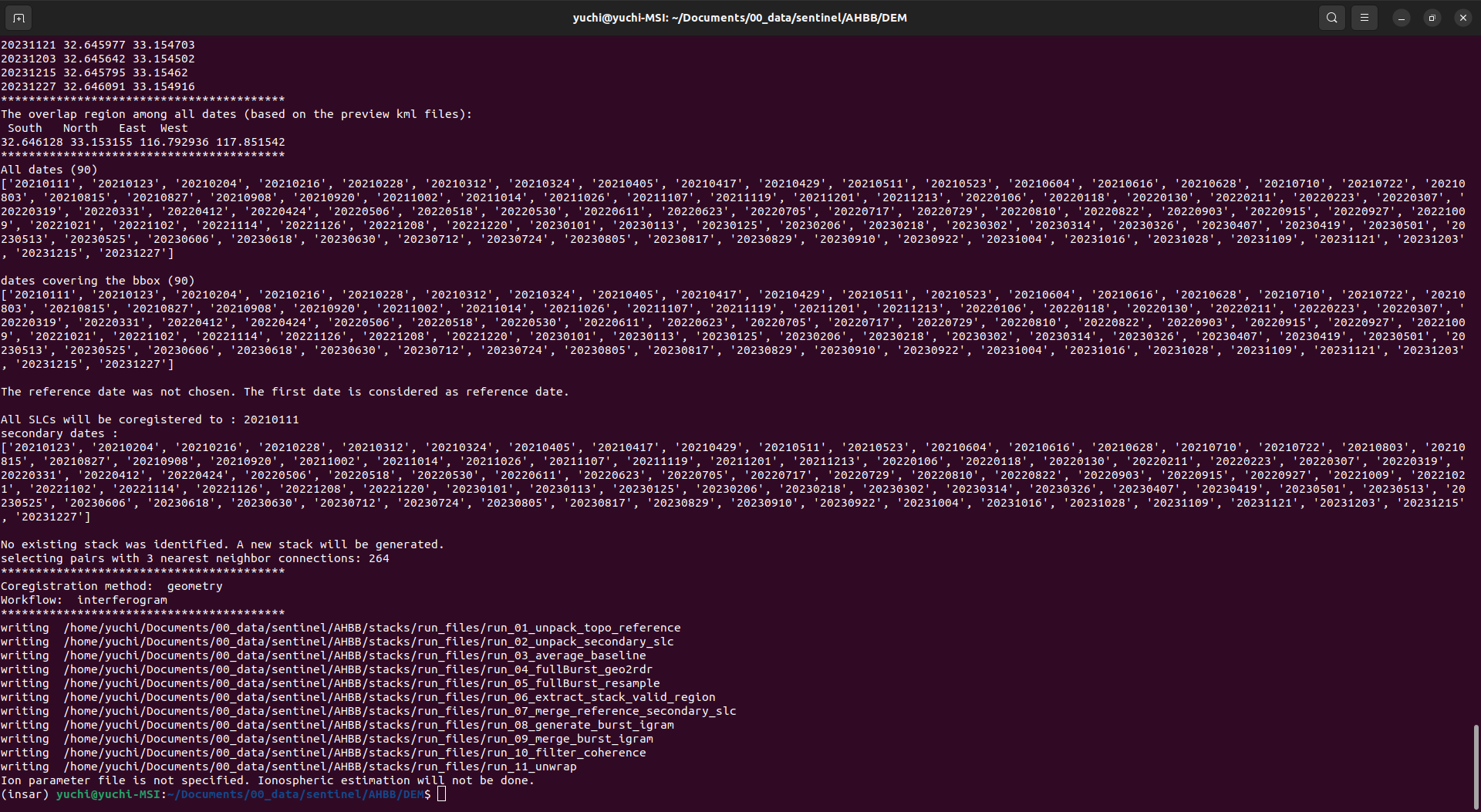

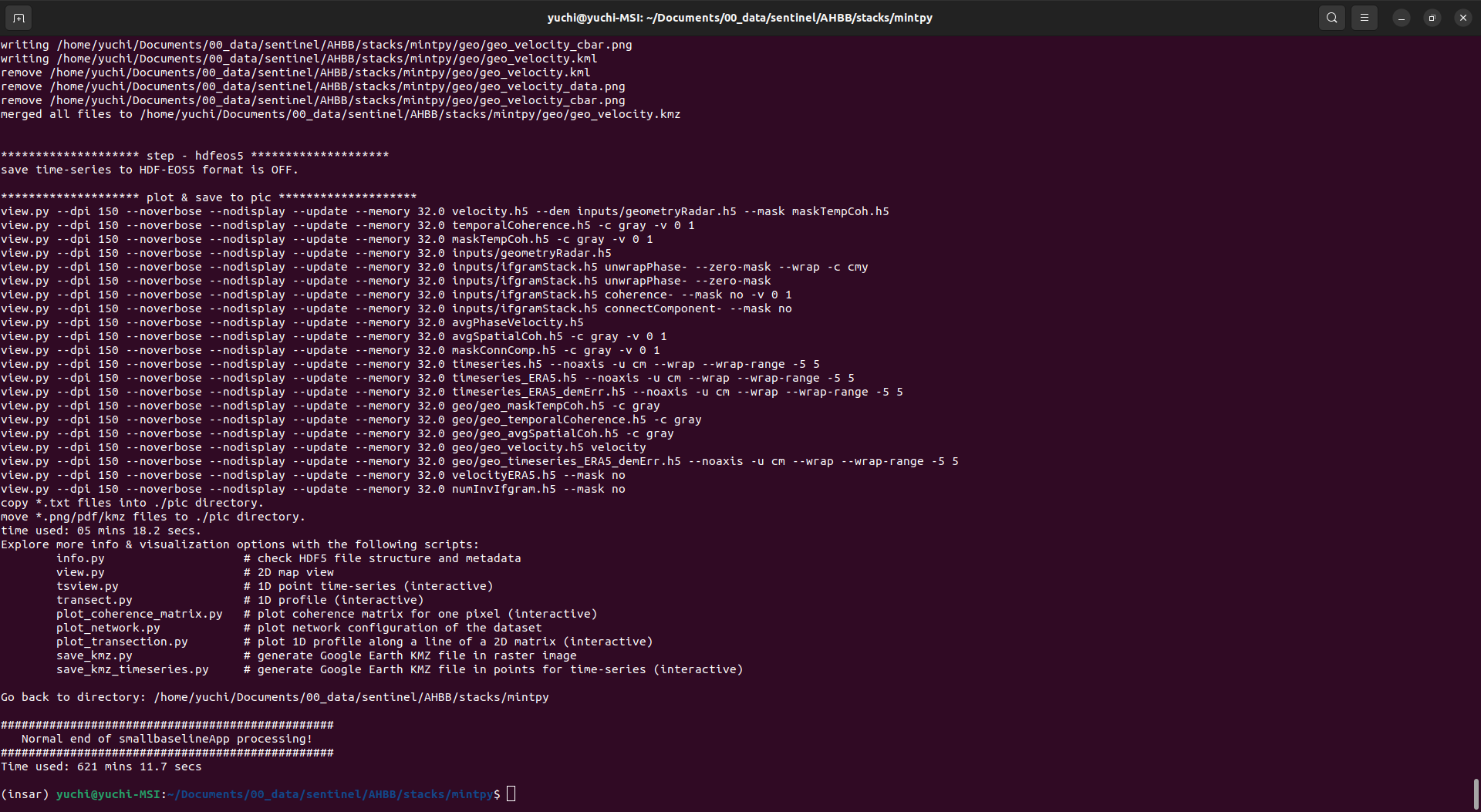

| (insar) yuchi@yuchi-MSI:~/Documents/00_data/sentinel/AHBB/stacks/mintpy$ view.py -h
usage: view.py [-h] [-n [NUM [NUM ...]]] [--nosearch] [--ex [Dset [Dset ...]]]
[--show-kept] [--noverbose]
[--math {reverse,rad2deg,sqrt,deg2rad,inverse,square}]
[-v VMIN VMAX] [-u UNIT] [--nd NO_DATA_VALUE] [--wrap]
[--wrap-range MIN MAX] [--interp INTERPOLATION]
[--alpha TRANSPARENCY] [--flip-lr] [--flip-ud] [--noflip]
[--nmli NUM] [--nomultilook] [--style {scatter,image}]
[--scatter-size SIZE] [-d DEM_FILE] [--mask-dem]
[--dem-noshade] [--dem-nocontour] [--dem-blend]
[--contour-smooth NUM] [--contour-step NUM] [--contour-lw NUM]
[--shade-az DEG] [--shade-alt DEG] [--shade-min MIN]
[--shade-max MAX] [--shade-exag NUM] [--shade-frac NUM]
[--base-color NUM] [--blend-mode STR] [--fontsize FONT_SIZE]
[--fontcolor FONT_COLOR] [--nowhitespace] [--noaxis] [--notick]
[--ylabel-rot YLABEL_ROT] [-c COLORMAP] [--cm-lut NUM]
[--cm-vlist CMAP_VLIST CMAP_VLIST CMAP_VLIST] [--nocbar]
[--cbar-nbins NUM | --cbar-ticks NUM [NUM ...]]
[--cbar-ext {max,None,min,both,neither}]
[--cbar-label CBAR_LABEL] [--cbar-loc CBAR_LOC]
[--cbar-size CBAR_SIZE] [--notitle] [--title-in]
[--title FIG_TITLE] [--title4sen] [--figsize WID LEN]
[--dpi DPI]
[--figext {.emf,.eps,.pdf,.png,.ps,.raw,.rgba,.svg,.svgz}]
[--fignum NUM] [--nrows NUM] [--ncols NUM]
[--wspace FIG_WID_SPACE] [--hspace FIG_HEI_SPACE]
[--no-tight-layout] [--coord {geo,radar,yx}] [--animation]
[--show-gnss] [--gnss-source {GENERIC,UNR,SIDESHOW,ESESES}]
[--gnss-comp {hz2los,enu2los,vert,up2los,horz}]
[--ref-gnss SITE_NAME] [--ex-gnss [SITE_NAME [SITE_NAME ...]]]
[--gnss-start-date YYYYMMDD] [--gnss-end-date YYYYMMDD]
[--horz-az NUM] [--gnss-redo] [--gnss-label] [--mask-gnss]
[--gnss-ms NUM] [-m FILE] [--mask-vmin MASK_VMIN]
[--mask-vmax MASK_VMAX] [--zm] [--coastline {110m,10m,50m}]
[--coastline-lw NUM] [--faultline FAULTLINE_FILE]
[--faultline-lw NUM] [--faultline-min-dist NUM] [--lalo-label]
[--lalo-step DEG] [--lalo-max-num NUM]
[--lalo-loc left right top bottom]
[--lalo-off LALO_OFFSET LALO_OFFSET] [--lalo-fs LALO_FONT_SIZE]
[--scalebar LEN X Y] [--noscalebar]
[--scalebar-pad SCALEBAR_PAD]
[--scalebar-lw SCALEBAR_LINEWIDTH] [--ram MAXMEMORY]
[--pts-marker PTS_MARKER] [--pts-ms PTS_MARKER_SIZE]
[--pts-yx Y X | --pts-lalo LAT LON | --pts-file PTS_FILE]
[--ref-date DATE] [--ref-lalo LAT LON] [--ref-yx Y X]
[--noreference] [--ref-marker REF_MARKER] [--ref-size NUM]
[-o [OUTFILE [OUTFILE ...]]] [--save] [--nodisplay] [--update]
[--sub-x XMIN XMAX] [--sub-y YMIN YMAX]
[--sub-lat LATMIN LATMAX] [--sub-lon LONMIN LONMAX]
file [dset [dset ...]]
Plot InSAR Product in 2D
optional arguments:
-h, --help show this help message and exit
--show-kept, --show-kept-ifgram
display kept interferograms only, without dropped interferograms
--noverbose Disable the verbose message printing (default: True).
--math {reverse,rad2deg,sqrt,deg2rad,inverse,square}
Apply the math operation before displaying [for single subplot ONLY].
E.g. plot the std. dev. of the variance file.
square = x^2
sqrt = x^1/2
reverse = x * -1
inverse = 1 / x
--style {scatter,image}
Plot data as image or scatter (default: image).
--scatter-size SIZE Scatter marker size in points**2 (default: 10).
--ram MAXMEMORY, --memory MAXMEMORY
Max amount of memory in GB to use (default: 4.0).
Adjust according to your computer memory.
Input File:
File/Dataset to display
file file for display
dset optional - dataset(s) to display (default: []).
-n [NUM [NUM ...]], --dset-num [NUM [NUM ...]]
optional - order number of date/dataset(s) to display (default: []).
--nosearch Disable glob search for input dset.
--ex [Dset [Dset ...]], --exclude [Dset [Dset ...]]
dates will not be displayed (default: []).
Data Display Options:
Options to adjust the dataset display
-v VMIN VMAX, --vlim VMIN VMAX
Display limits for matrix plotting.
-u UNIT, --unit UNIT unit for display. Its priority > wrap
--nd NO_DATA_VALUE, --no-data-val NO_DATA_VALUE, --no-data-value NO_DATA_VALUE
Specify the no-data-value to be ignored and masked.
--wrap re-wrap data to display data in fringes.
--wrap-range MIN MAX range of one cycle after wrapping (default: [-3.141592653589793, 3.141592653589793]).
--interp INTERPOLATION, --interpolation INTERPOLATION
matplotlib interpolation method for imshow, e.g.:
none, antialiased, nearest, bilinear, bicubic, spline16, sinc, etc. Check more at:
https://matplotlib.org/stable/gallery/images_contours_and_fields/interpolation_methods.html
--alpha TRANSPARENCY Data transparency.
0.0 - fully transparent, 1.0 - no transparency.
--flip-lr flip left-right
--flip-ud flip up-down
--noflip turn off auto flip for radar coordinate file
--nmli NUM, --num-multilook NUM, --multilook-num NUM
multilook data in X and Y direction with a factor for display (default: 1).
--nomultilook, --no-multilook
do not multilook, for high quality display.
If multilook is True and multilook_num=1, multilook_num will be estimated automatically.
Useful when displaying big datasets.
DEM:
display topography in the background
-d DEM_FILE, --dem DEM_FILE
DEM file to show topography as background
--mask-dem Mask out DEM pixels not coincident with valid data pixels
--dem-noshade do not show DEM shaded relief
--dem-nocontour do not show DEM contour lines
--dem-blend blend the DEM shade with input image to have a GMT-like impression.
--contour-smooth NUM [Contour] Topography contour smooth factor - sigma of Gaussian filter.
Set to 0.0 for no smoothing; (default: 3.0).
--contour-step NUM [Contour] Topography contour step in meters (default: 200.0).
--contour-lw NUM, --contour-linewidth NUM
[Contour] Topography contour linewidth (default: 0.5).
--shade-az DEG [Shade] Azimuth angle (0-360, degrees clockwise from North) of the light source (default: 315.0).
--shade-alt DEG [Shade] Altitude (0-90, degrees up from horizontal) of the light source (default: 45.0).
--shade-min MIN [Shade] Minimum height of shaded relief topography (default: -4000.0 m).
--shade-max MAX [Shade] Maximum height of shaded relief topography (default: max(DEM)+2000 m).
--shade-exag NUM [Shade] Vertical exaggeration ratio (default: 0.5).
--shade-frac NUM [Blend] Increases/decreases the contrast of the hillshade (default: 0.5).
--base-color NUM [Blend] Topograhpy basemap greyish color ranges in [0,1] (default: 0.7).
--blend-mode STR [Blend] Type of blending used to combine the colormapped data with illumated topography.
(choices: hsv, soft, overlay; default: overlay).
https://matplotlib.org/stable/gallery/specialty_plots/topographic_hillshading.html
Figure:
Figure settings for display
--fontsize FONT_SIZE font size
--fontcolor FONT_COLOR
font color (default: k).
--nowhitespace do not display white space
--noaxis do not display axis
--notick do not display tick in x/y axis
--ylabel-rot YLABEL_ROT
Y-axis tick label rotation in degree anti-clockwisely (default: None).
Set to 90 for a vertical y-axis tick labels
-c COLORMAP, --colormap COLORMAP
colormap used for display, i.e. jet, cmy, RdBu, hsv, jet_r, viridis, etc.
More at https://mintpy.readthedocs.io/en/latest/api/colormaps/
--cm-lut NUM, --cmap-lut NUM
number of increment of colormap lookup table (default: 256).
--cm-vlist CMAP_VLIST CMAP_VLIST CMAP_VLIST, --cmap-vlist CMAP_VLIST CMAP_VLIST CMAP_VLIST
list of 3 float numbers, for truncated colormap only (default: [0.0, 0.7, 1.0]).
--nocbar, --nocolorbar
do not display colorbar
--cbar-nbins NUM number of bins for colorbar.
--cbar-ticks NUM [NUM ...]
colorbar ticks.
--cbar-ext {max,None,min,both,neither}
Extend setting of colorbar; based on data stat by default.
--cbar-label CBAR_LABEL
colorbar label
--cbar-loc CBAR_LOC colorbar location for single plot (default: right).
--cbar-size CBAR_SIZE
colorbar size and pad (default: 2%).
--notitle do not display title
--title-in draw title in/out of axes
--title FIG_TITLE, --fig-title FIG_TITLE, --figtitle FIG_TITLE
Title shown in the figure.
--title4sen, --title4sentinel1
display Sentinel-1 A/B and IPF info in title.
--figsize WID LEN figure size in inches - width and length
--dpi DPI DPI - dot per inch - for display/write (default: 300).
--figext {.emf,.eps,.pdf,.png,.ps,.raw,.rgba,.svg,.svgz}
File extension for figure output file (default: .png).
--fignum NUM number of figure windows
--nrows NUM subplot number in row
--ncols NUM subplot number in column
--wspace FIG_WID_SPACE
width space between subplots in inches
--hspace FIG_HEI_SPACE
height space between subplots in inches
--no-tight-layout disable automatic tight layout for multiple subplots
--coord {geo,radar,yx}
Display axes in geo or yx coordinates (for geocoded file only; default: geo).
--animation enable animation mode
GNSS:
GNSS data to display
--show-gnss, --show-gps
Show UNR GNSS location within the coverage.
--gnss-source {GENERIC,UNR,SIDESHOW,ESESES}, --gnss-src {GENERIC,UNR,SIDESHOW,ESESES}, --gps-source {GENERIC,UNR,SIDESHOW,ESESES}
Source of the GNSS displacement solution (default: UNR).
UNR : Nevada Geodetic Lab at Univ. of Nevada, Reno (Blewitt et al., 2018, Eos)
SIDESHOW : Jet Propulsion Lab (JPL) GNSS time series (Heflin et al., 2020, ESS)
ESESES : Enhanced Solid Earth Science ESDR System (ESESES) by JPL and SOPAC
--gnss-comp {hz2los,enu2los,vert,up2los,horz}, --gps-comp {hz2los,enu2los,vert,up2los,horz}
Plot GNSS in color indicating deformation velocity in (default: None).
--ref-gnss SITE_NAME, --ref-gps SITE_NAME
Reference GNSS site
--ex-gnss [SITE_NAME [SITE_NAME ...]], --ex-gps [SITE_NAME [SITE_NAME ...]]
Exclude GNSS sites, require --gnss-comp.
--gnss-start-date YYYYMMDD, --gps-start-date YYYYMMDD
start date of GNSS data, default: the 1st SAR acquisition
--gnss-end-date YYYYMMDD, --gps-end-date YYYYMMDD
end date of GNSS data, default: the last SAR acquisition
--horz-az NUM, --hz-az NUM
Azimuth angle (anti-clockwise from the north) of the horizontal movement in degrees
E.g.: -90. for east direction [default]
0. for north direction
Set to the azimuth angle of the strike-slip fault to show the fault-parallel displacement.
--gnss-redo, --gps-redo
Re-calculate GNSS observations in LOS direction, instead of read from existing CSV file.
--gnss-label, --gps-label
Show GNSS site name
--mask-gnss, --mask-gps
Mask out GNSS stations not coincident with valid data pixels
--gnss-ms NUM, --gps-ms NUM
Plot GNSS value as scatter in size of ms**2 (default: 6).
Mask:
Mask file/options
-m FILE, --mask FILE mask file for display. "no" to turn OFF masking.
--mask-vmin MASK_VMIN
hide pixels with mask value < vmin (default: None).
--mask-vmax MASK_VMAX
hide pixels with mask value > vmax (default: None).
--zm, --zero-mask mask pixels with zero value.
Map:
for one subplot in geo-coordinates only
--coastline {110m,10m,50m}
Draw coastline with specified resolution (default: None).
This will enable --lalo-label option.
https://scitools.org.uk/cartopy/docs/latest/reference/generated/cartopy.mpl.geoaxes.GeoAxes.html
--coastline-lw NUM, --coastline-linewidth NUM
Coastline linewidth (default: 1).
--faultline FAULTLINE_FILE
Draw fault line using specified GMT lonlat file.
--faultline-lw NUM, --faultline-linewidth NUM
Faultline linewidth (default: 0.5).
--faultline-min-dist NUM, --faultline-min-len NUM
Show fault segments with length >= X km (default: 0.1).
--lalo-label Show N, S, E, W tick label for plot in geo-coordinate.
Useful for final figure output.
--lalo-step DEG Lat/lon step for lalo-label option.
--lalo-max-num NUM Maximum number of lalo tick label (default: 3).
--lalo-loc left right top bottom
Draw lalo label in [left, right, top, bottom] (default: [1, 0, 0, 1]).
--lalo-off LALO_OFFSET LALO_OFFSET, --lalo-offset LALO_OFFSET LALO_OFFSET
Distance between tick and label in points (default: None).
Set to negative value, e.g. -36 -18, to move the ticklabel inside the plot.
--lalo-fs LALO_FONT_SIZE, --lalo-fontsize LALO_FONT_SIZE
Lalo label font size in points (default: None).
--scalebar LEN X Y scale bar distance and location in ratio (default: [0.2, 0.2, 0.1]).
distance in ratio of total width
location in X/Y in ratio with respect to the lower left corner
--scalebar 0.2 0.2 0.1
--scalebar 0.2 0.2 0.8
--scalebar 0.2 0.8 0.1
--scalebar 0.2 0.8 0.8
--noscalebar, --nosbar
do not display scale bar.
--scalebar-pad SCALEBAR_PAD, --sbar-pad SCALEBAR_PAD
scale bar label pad in ratio of scalebar width (default: 0.05).
--scalebar-lw SCALEBAR_LINEWIDTH, --scalebar-linewidth SCALEBAR_LINEWIDTH
scale bar symbol line width (default: 2.0).
Point:
Plot points defined by y/x or lat/lon
--pts-marker PTS_MARKER
Marker of points of interest (default: k^).
--pts-ms PTS_MARKER_SIZE
Marker size for points of interest (default: 6.0).
--pts-yx Y X Point in Y/X
--pts-lalo LAT LON Point in Lat/Lon
--pts-file PTS_FILE Text file for point(s) in lat/lon column
Reference date / point:
Modify reference in time / space for display
--ref-date DATE Change reference date for display
--ref-lalo LAT LON Change reference point in LAT/LON for display
--ref-yx Y X Change reference point in Y/X for display
--noreference do not show reference point
--ref-marker REF_MARKER
marker of reference pixel (default: ks).
--ref-size NUM marker size of reference point (default: 6).
Save/Output:
Save figure and write to file(s)
-o [OUTFILE [OUTFILE ...]], --outfile [OUTFILE [OUTFILE ...]]
save the figure with assigned filename.
By default, it's calculated based on the input file name.
--save save the figure
--nodisplay save and do not display the figure
--update enable update mode for save figure: skip running if
1) output file already exists AND
2) output file is newer than input file.
Subset:
Display dataset in subset range
--sub-x XMIN XMAX, --subset-x XMIN XMAX
subset display in x/cross-track/range direction
--sub-y YMIN YMAX, --subset-y YMIN YMAX
subset display in y/along-track/azimuth direction
--sub-lat LATMIN LATMAX, --subset-lat LATMIN LATMAX
subset display in latitude
--sub-lon LONMIN LONMAX, --subset-lon LONMIN LONMAX
subset display in longitude
example:
view.py velocity.h5
view.py velocity.h5 velocity --wrap --wrap-range -2 2 -c cmy --lalo-label
view.py velocity.h5 --ref-yx 210 566 #change reference pixel for display
view.py velocity.h5 --sub-lat 31.05 31.10 --sub-lon 130.05 130.10 #subset in lalo / yx
view.py velocity.h5 velocity --mask waterBody.h5 --mask-vmax 1
view.py velocity.h5 velocity --style scatter --scatter-size 12

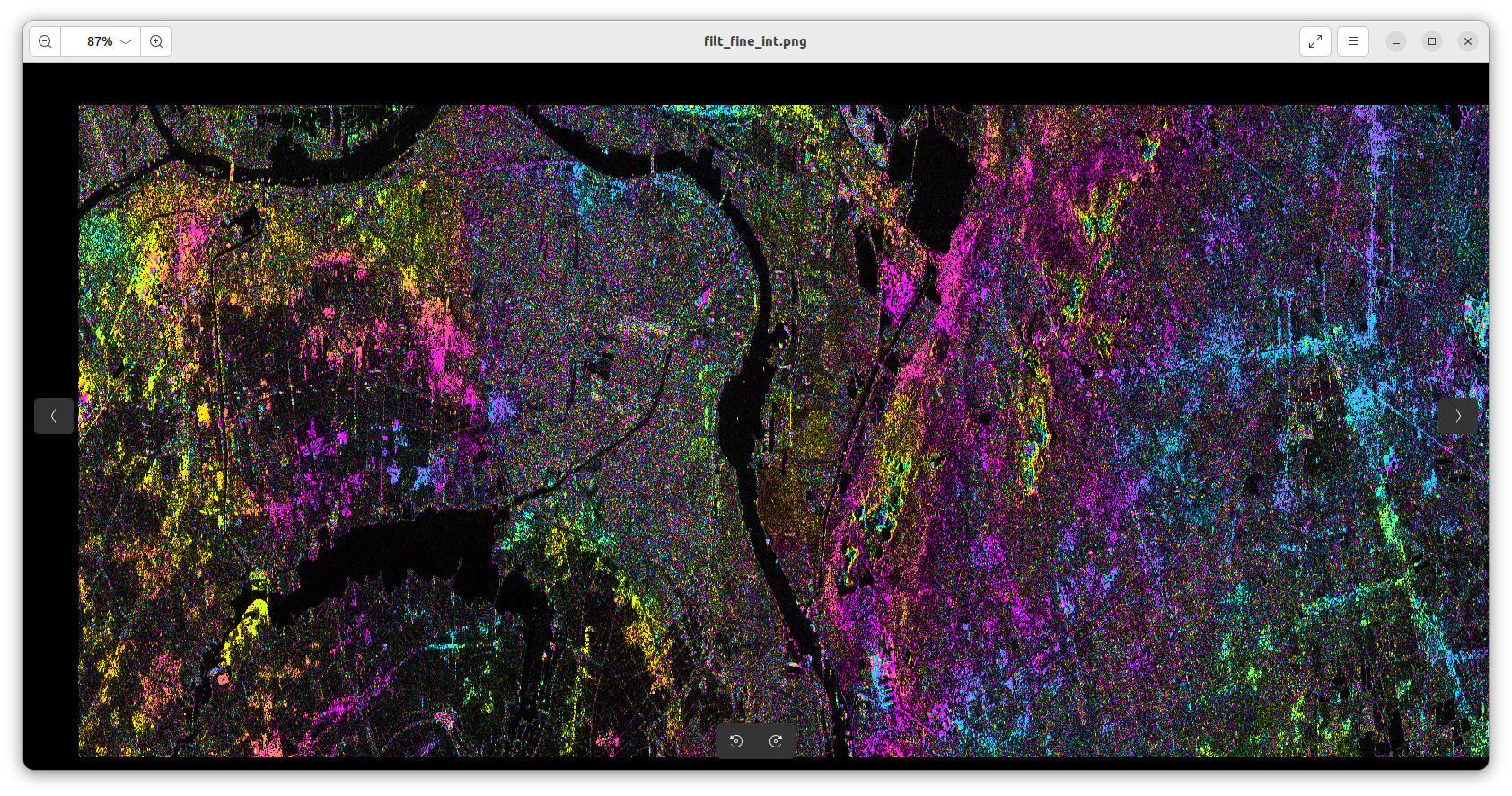

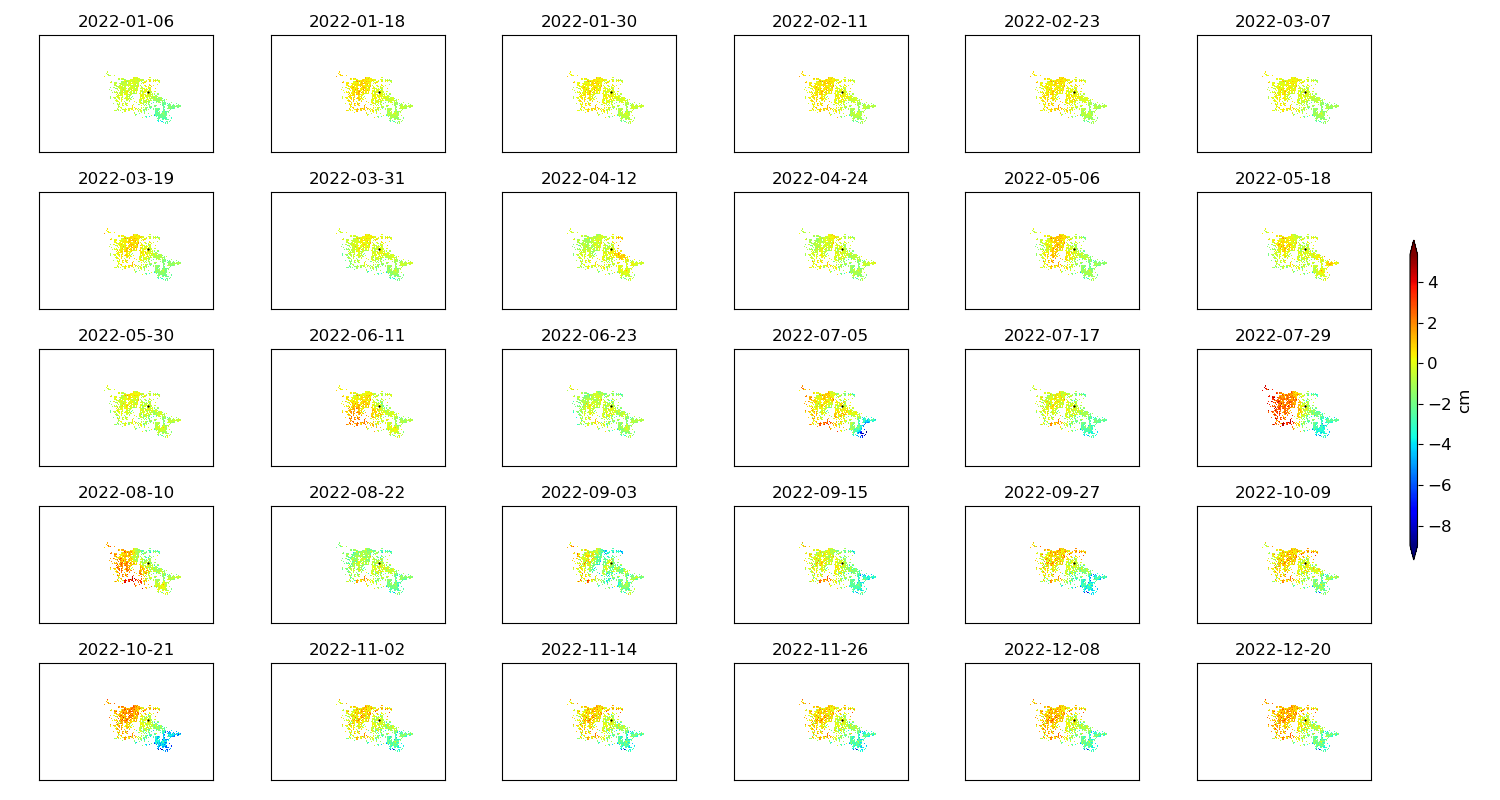

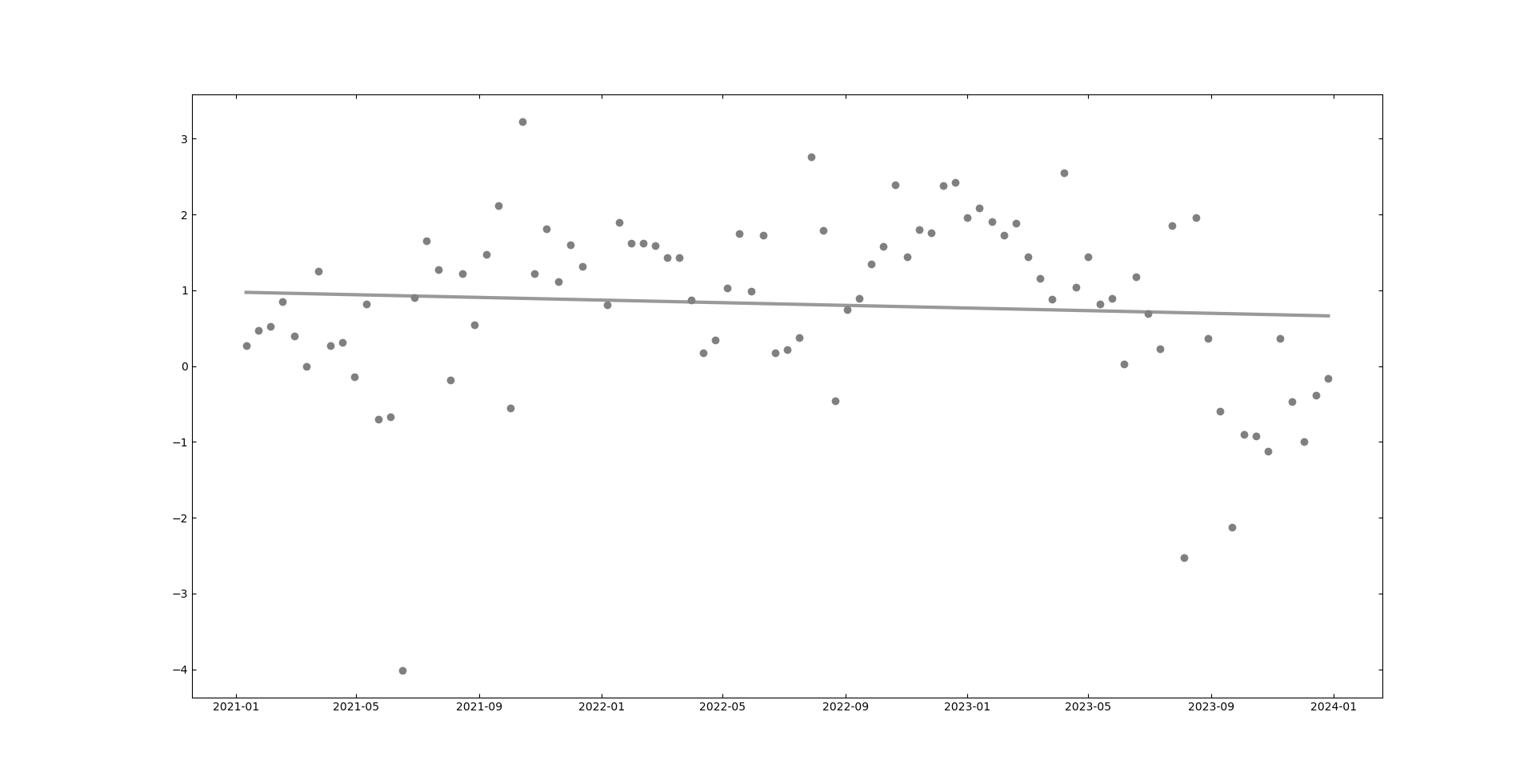

view.py timeseries.h5
view.py timeseries.h5 --ref-date 20101120 #change reference date
view.py timeseries.h5 --ex drop_date.txt #exclude dates to plot
view.py timeseries.h5 '*2017*' '*2018*' #all acquisitions in 2017 and 2018
view.py timeseries.h5 20200616_20200908 #reconstruct interferogram on the fly

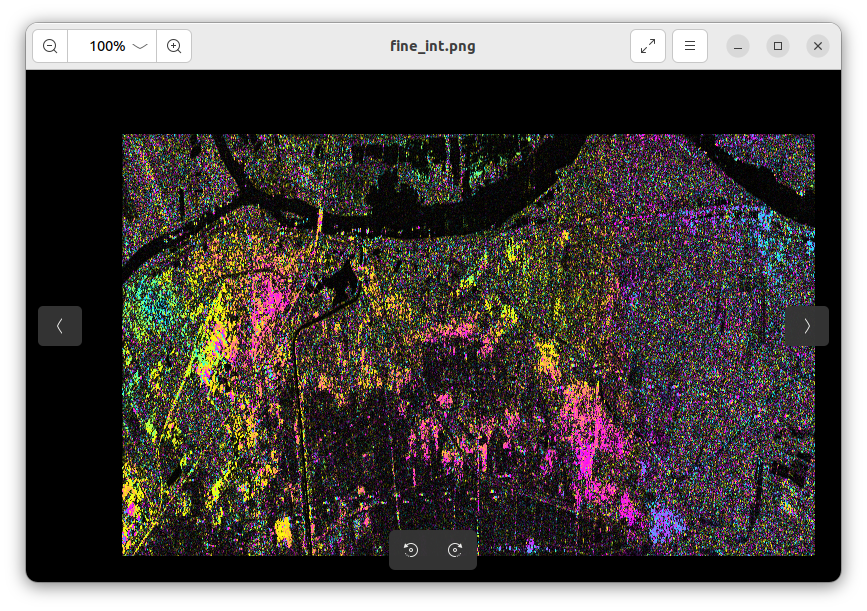

view.py ifgramStack.h5 coherence
view.py ifgramStack.h5 unwrapPhase- #unwrapPhase only in the presence of unwrapPhase_bridging
view.py ifgramStack.h5 -n 6 #the 6th slice
view.py ifgramStack.h5 20171010_20171115 #all data related with 20171010_20171115
view.py ifgramStack.h5 'coherence*20171010*' #all coherence related with 20171010
# GNSS (for one subplot in geo-coordinates only)
view.py geo_velocity_msk.h5 velocity --show-gnss --gnss-label #show locations of available GPS
view.py geo_velocity_msk.h5 velocity --show-gnss --gnss-comp enu2los --ref-gnss GV01
view.py geo_velocity_msk.h5 velocity --show-gnss --gnss-comp enu2los --ref-gnss GV01 --gnss-source ESESES
view.py geo_timeseries_ERA5_ramp_demErr.h5 20180619 --ref-date 20141213 --show-gnss --gnss-comp enu2los --ref-gnss GV01
# Faults
view.py filt_dense_offsets.bil range --faultline simple_fault_confident.lonlat
# Save and Output
view.py velocity.h5 --save
view.py velocity.h5 --nodisplay
view.py geo_velocity.h5 velocity --nowhitespace
|
