Land Cover Classification using Sentinel2 and Deep Learning

Intro

This post is about getting to know LULC classificaiton using Sentinel 2 based on deep learing.

Sentinel 2 Dataset pre-porcess in SNAP

Sentinel-2 is a mission of two twin satellites, promoted by the European Space Agency, travelling around the Globe, completing a full circle every ten days. The two satellites are flying in the same orbit but phased at 180°, which means that they co-operate to provide freshly captured imagery every five days. One is called S2A and its twin is called S2B1!

Data Download

wget --content-disposition --continue --user={mengyuchi} --password={5212109mengle} "https://scihub.copernicus.eu/dhus/odata/v1/Products('9586b4cc-c2bf-4efb-8ee7-87f2ff6f2089')/$value"

Download with aria2c

1. download product.meta4

2. cd to the folder that you want to place

3. aria2c --http-user=mengyuchi --http-passwd=5212109mengle --check-certificate=false --max-concurrent-downloads=2 -M products.meta4

Download with python

1. Setup python environment for python

2. Open Anaconda powershell prompt, install sentinelsat package4

pip install sentinalsat

Sen2Cor

Sen2Cor in SNAP

1. Unzip Sentinel2 file

2. Install Sen2Cor in SNAP Tools

3. Optical\Thematic Land Processing\Sen2Cor

4. I\O Parameter: Select .xml file in D:\Data\Sentinel2\xuzhou\Original\S2A_MSIL1C_20161206T030112_N0204_R032_T50SMC_20161206T030749.SAFE\MTD_MSIL1C.xml

5. Processing Parameter: Resolution → All

6. Wait for processing

Sen2Cor in cmd

1. Download Sen2Cor v2.10

2. Unzip

3. Open dir in command prompt

4. Copy Sentinel2 L1C data file path L2A_Process.bat I:\Data\Sentinel2\xuzhou\L1C\S2A_MSIL1C_20200320T025541_N0209_R032_T50SMC_20200320T060846.SAFE

5. Run command L2A_Process.bat I:\Data\Sentinel2\xuzhou\L1C\S2A_MSIL1C_20200320T025541_N0209_R032_T50SMD_20200320T060846.SAFE

6. Wait around 10 mins.

7. Check results in SNAP or QGIS.

Sen2Cor using bat script

1. Create new txt file in folder E:\Code\Sentinel2_L1C_to_L2A

2. Copy these code in txt file

title Sentinel-2A L1C bat script


set "Sen2cor_bin=C:\Users\mengy\.snap\auxdata\Sen2Cor-02.10.01-win64"

rem set "input_dir=E:\DATA\LULC\Sentinel2\L1C"

set "input_dir=E:\DATA\L1C_temp"

set "output_dir=E:\DATA\LULC\Sentinel2\L2A"

for /d  %%i in  (%input_dir%\S2*.SAFE ) do (
	%Sen2cor_bin%\L2A_Process.bat %%i --output_dir=%output_dir%  --resolution=10
	echo "--------------------------------------------------------------"
)
echo "All Done"

3. Save as Sen2cor_weak.bat

4. Open Windows powershell, cd to Dir E:\Code\Sentinel2_L1C_to_L2A and run ./Sen2cor_weak.bat

5. Error Sen2cor 2.10.01 - Product metadata file cannot be read with 14.2 baseline L1C

The solution to this error: using Sen2Cor-2.05.05-win64 to process sentinel 2 data that produced before 20176.

6. Output dir for data before 2017 is E:\DATA\LULC\Sentinel2\L1C\Before_2017, and output dir for data after 2017 is E:\DATA\LULC\Sentinel2\L2A

Sen2Res in SNAP

1. Get Extent of AOI in ArcGIS

• Extent for Xuzhou_center in deg

Top: 34.585279
Bottom: 34.022282
Left: 116.811255
Right: 117.713315

• Extent for feng_pei in deg

Top: 34.975770
Bottom: 34.406956
Left: 116.355183
Right: 117.144540

• Geo Coordinates setting:

S2A_*SMC_*: South and West -> 34.022282 & 116.811255
S2A_*SMD_*: North and West -> 34.585279 & 116.811255
S2A_*SNC_*: South and East -> 34.022282 & 117.713315
S2A_*SND_*: North and East -> 34.585279 & 117.713315

Code for subset

S2A_*SMC_*: North 34.337, East 117.104, South 34.022 116.811 POLYGON ((34.337 117.104, 34.337 116.811, 34.022 116.811, 34.022 117.104, 34.337 117.104))
S2A_*SMD_*:
S2A_*SNC_*:
S2A_*SND_*:

2. Raster → subset

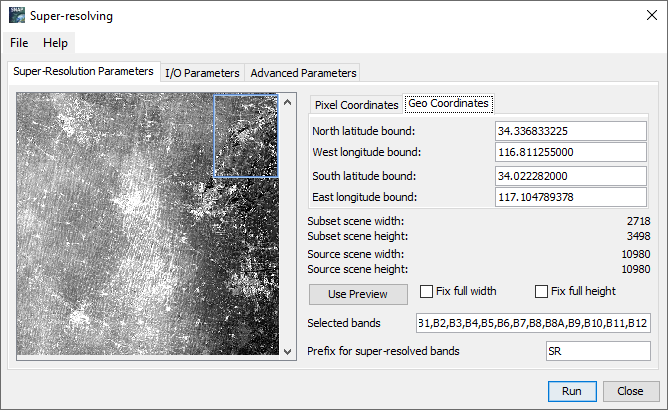

3. Optical → Sentinel2 super-resolution

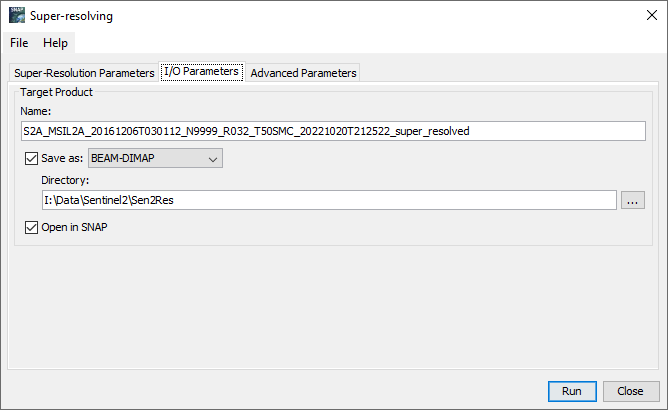

4. Edit Geo Coordinates, I/O Parameters → Directory in panel

5. Run, this would take a while

6. Total time spend for processing: 01:48:46.160

Mosaic

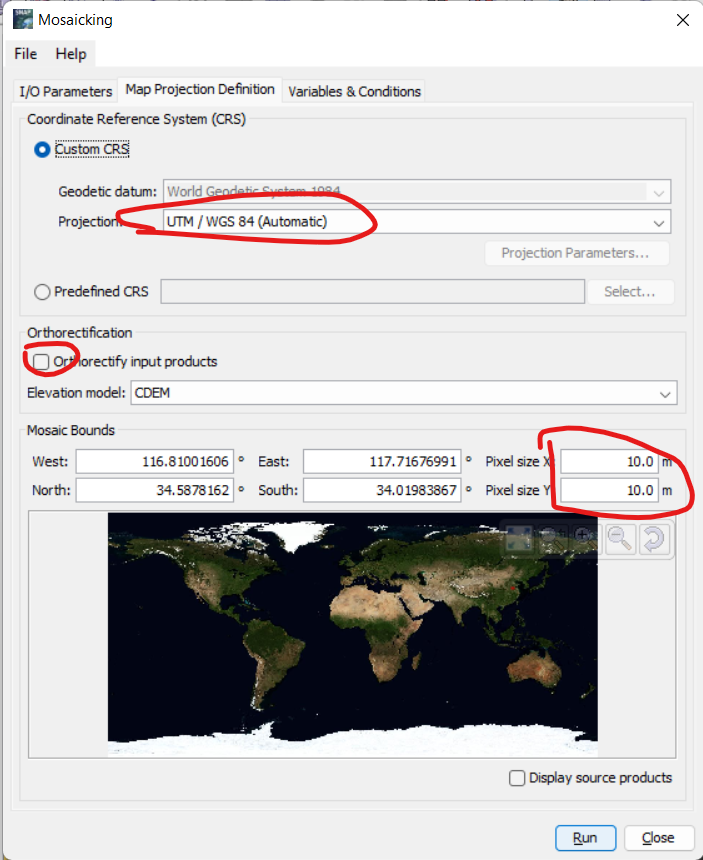

1. Raster → Geometric → Mosaicking

Subset in SNAP

Due to long processing time of Sen2Res, we have to clip our original L2A product into sub-areas2. We use subset tool in SNAP for this process.

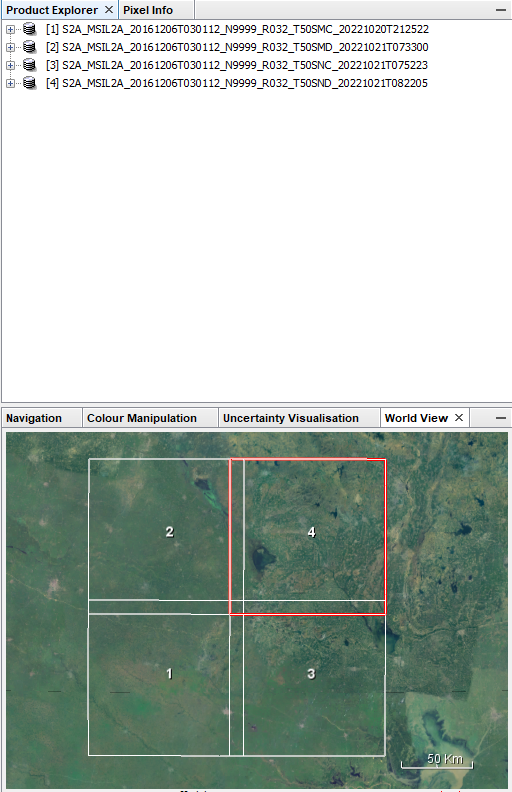

1. Open multi L2A products in SNAP.

3. Raster → Subset

Using SNAP-GPT tool to process Sentinel2 data

Setup

GPT for Resampling and subset

LULC classification using lstm-sentinel2-landcover

Code for Deep Learning for Land Cover Change Detection5

Python environment setup

1. conda create -n n_env_py37 python=3.7

2. conda activate n_env_py37

3. cd to folder C:\Users\mengy\Documents\VS workspace\LSTM_Sentinel2_land_cover\lstm-sentinel2-landcover

4. conda config --env --add channels conda-forge pip install numpy

5. conda install -c conda-forge fire

6. conda create -n tf tensorflow conda activate tf

7. conda install -c conda-forge segmentation-models-pytorch

8. conda install -c conda-forge scikit-learn

9. conda install -c conda-forge scikit-image

10. conda install -c conda-forge tqdm

11. conda install -c conda-forge gdal

12. conda install -c conda-forge rasterio

Data preparation and placement

• Sentinel images: data/raw/sentinel/

• Ground Truth shapefile: data/raw/ground_truth/gt_shapefile/

• shapefile of area of interest (AOI) = shape of GT as shapefile: data/raw/ground_truth/overallshape/

Pre-processing

Example models are in src/models/, the data generators used for training are in src/helpers/image_functions.py.

• baseline_cnn.py is a simple FCN that trains on single images at a time (i.e. no sequences). It can be used as a pretrained base model for the LSTM models, as shown in e.g. lstm_fixed_seq.py.

• lstm_fixed_seq.py is a FCN+LSTM that trains with sequences of images, however the images that build the sequence are fixed (``.

• lstm_random_seq.py is also a FCN+LSTM that randomly builds a new sequence of images for each training batch.

Trained models are saved in models/. Tensorboard logs are saved in separate subdirectories of reports/logs/; this way they can be called via tensorboard --logdir=reports/logs (when in main directory).

Dataset Prepare

NDVI

1. NDVI Processer

Optical—>Thematic Land Processing—>Vegetation Radiometric Indices—>NDVI Processor

• Red source band: B4

• NIR source band: B8

2. Use Band Math

-Right Click or Raster to select Band Math

• Band Math Expression: ($2.B8 - $2.B4) / ($2.B8 + $2.B4)

植被红边位置指数 Red-Edge Position Index (REP)

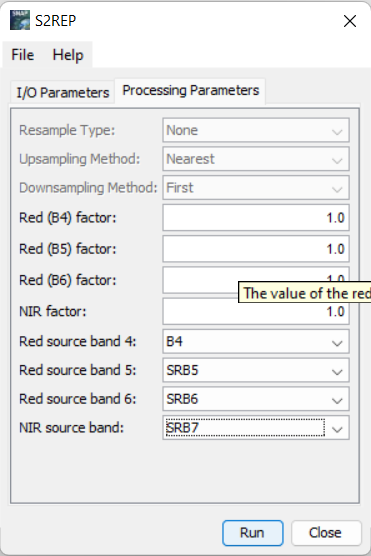

S2REP Processor

1. Set output folder in I/O Parameters

2. Set parameters in Processing parameters

• Red source band1: B4

• Red source band2: SRB5

• Red source band3: SRB6

• NIR source band: SRB7

水体指数MNDWI

考虑到重采样后具有中红外波段，这里使用它们计算改进的归一化水体指数MNDWI7.

• Green source band: B3

• NIR source band: SRB11

土壤亮度指数BI2 (The second Brightness Index)

• Red source band: B4

• Green source band: B3

• NIR source band: B8

Pricipal components analysis (PCA)

1. In SNAP

Orfeo ToolBox is an open-source project for state-of-the-art remote sensing, including a fast image viewer, apps callable from Bash, Python or QGIS, and a powerful C++ API.

• Open image S2A_MSIL2A_20210921T025551_N9999_R032_T50_20221119T225446_super_resolved_mosaic

• Delete bands _count

• Export to Geotiff

• Open in Orfeo Toolboxs C:\Users\mengy\Downloads\Programs\OTB-8.1.1-Win64\monteverdi.bat

• File Open Geotiff

• 在View下选项中勾选OTB-Applications browser

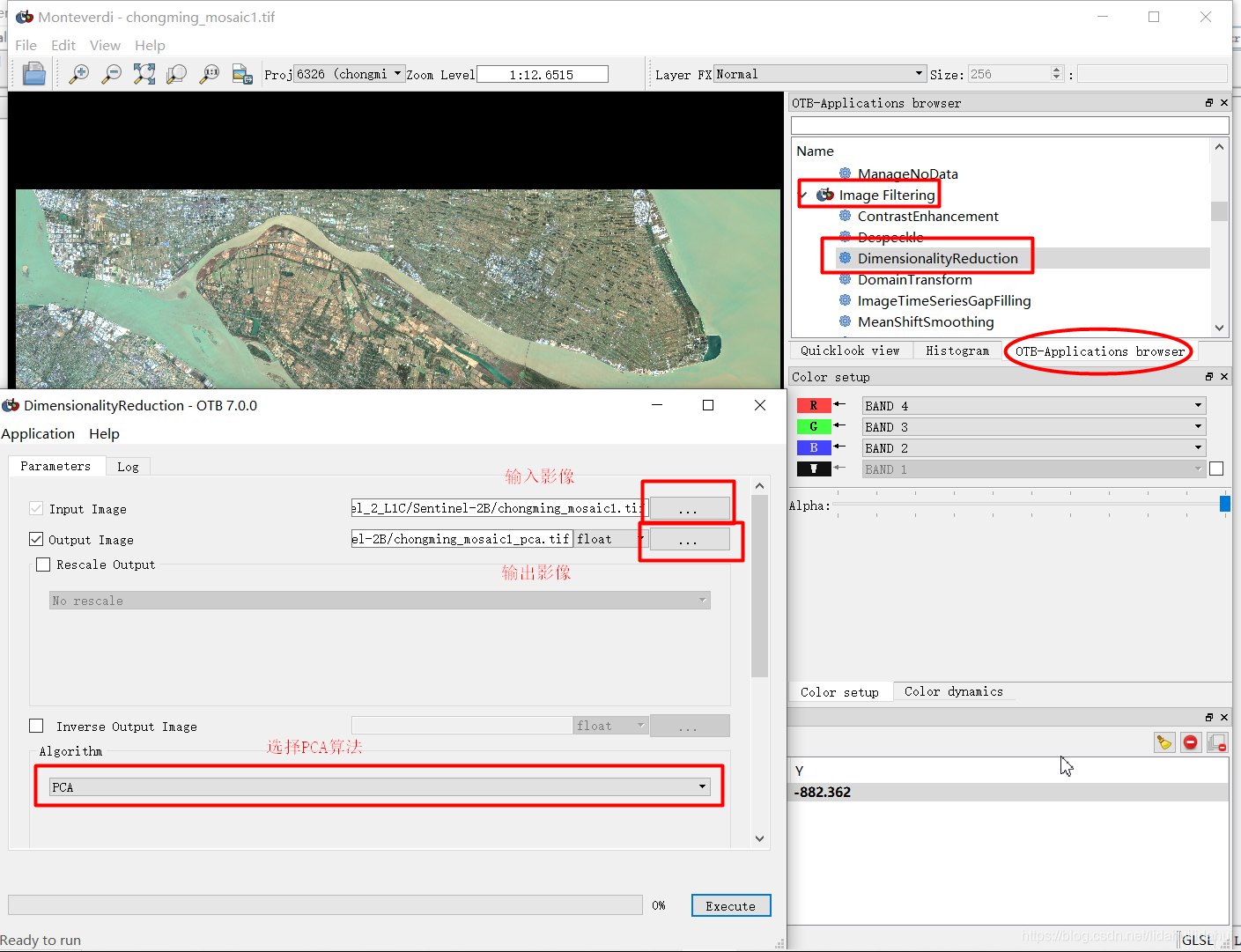

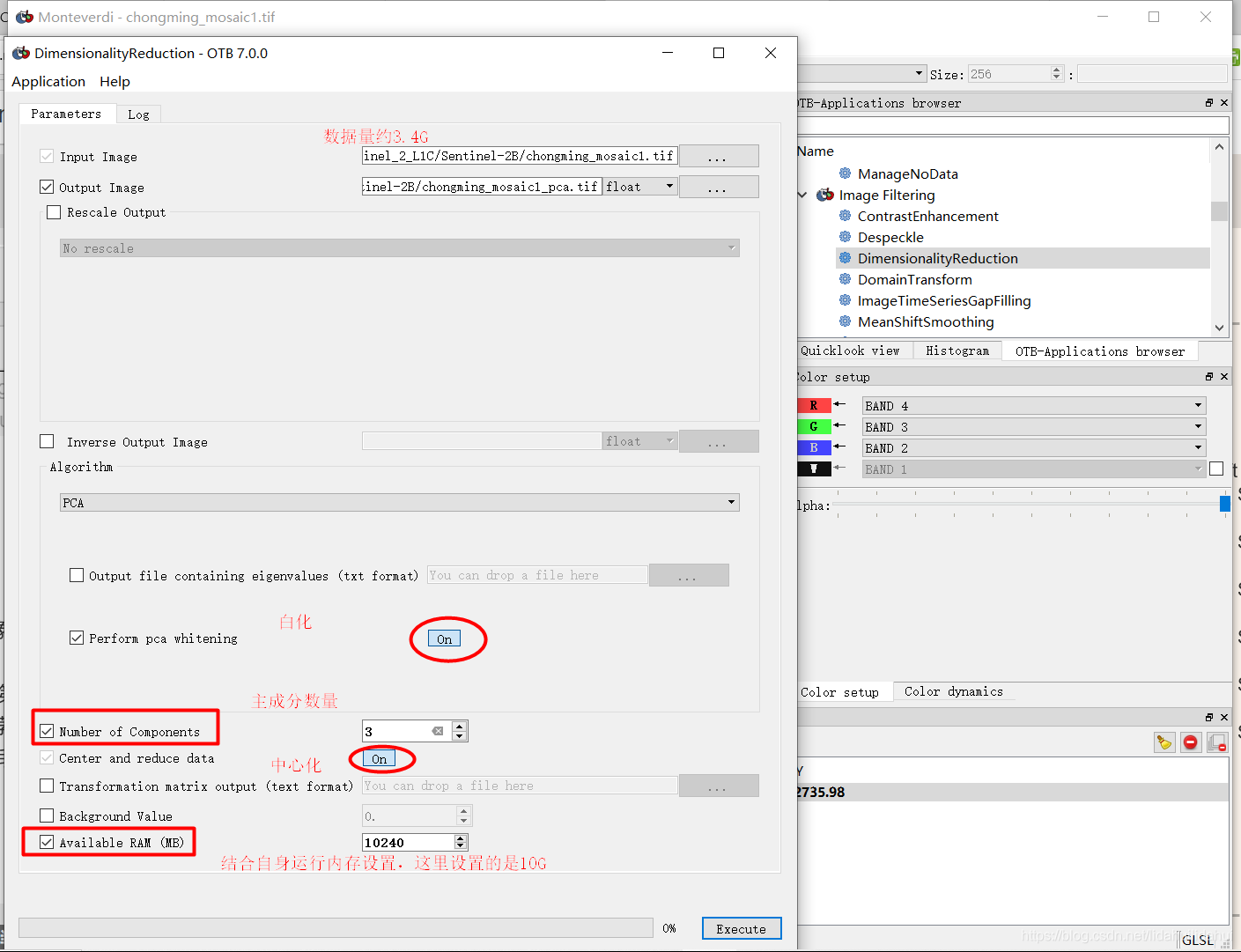

• OTB-Applications browser—>Image Filtering—>DemensionalityReduction

• Execute

2. In Gee

主成分分析是将众多具有相关性的数据指标，重新组合成一组新的指标,新形成的指标互不相关，并且前几个主成分能代表原始数据的大部分信息16。

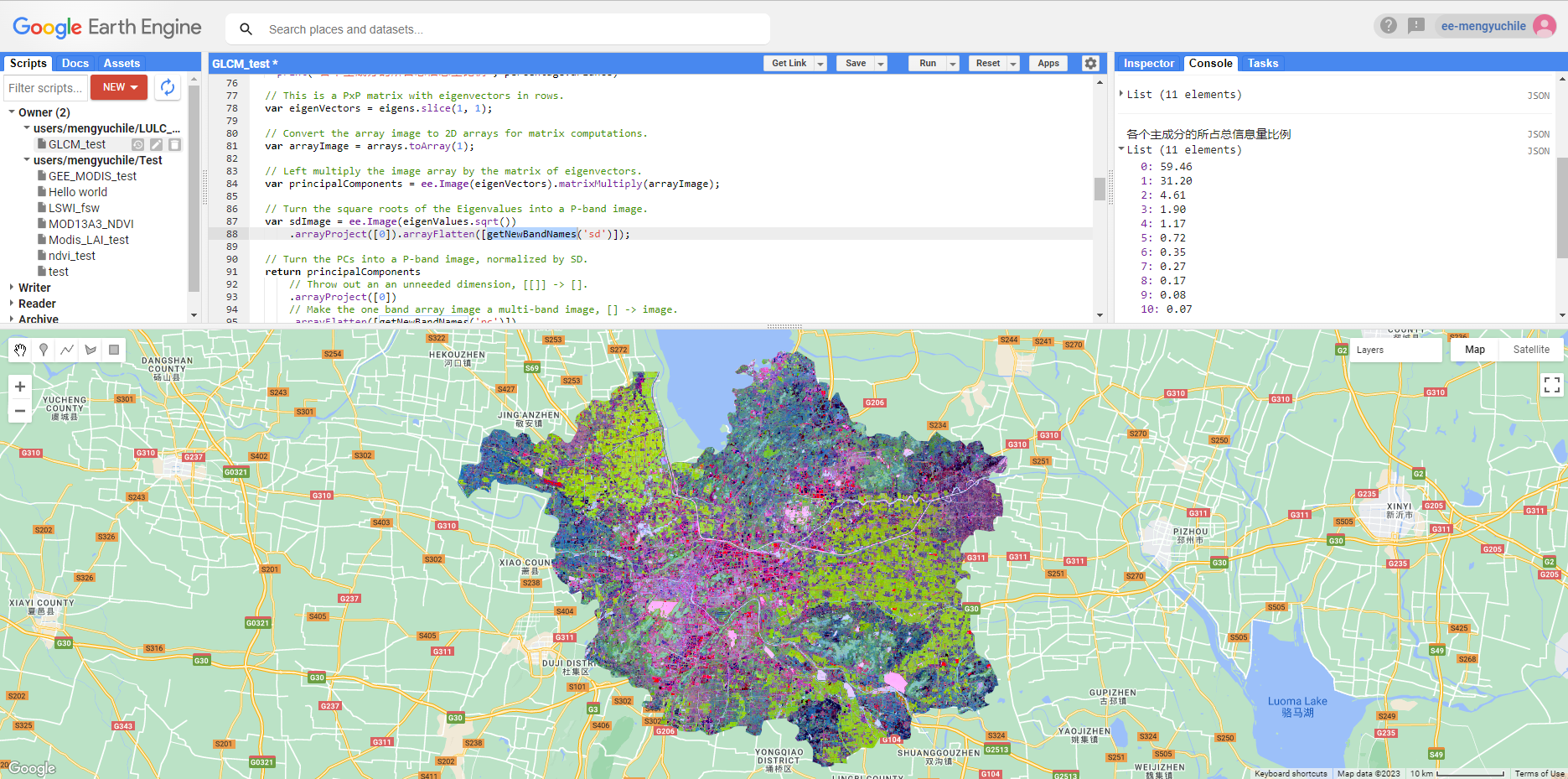

Performing PCA per image over imageCollection in Google Earth Engine17.

主成分分析是将众多具有相关性的数据指标，重新组合成一组新的指标,新形成的指标互不相关，并且前几个主成分能代表原始数据的大部分信息18。

Sources:

• Computing PCA on GEE for a large area19.

• Eigen Analysis20.

Error: Function getnewbandnames not defined.

Solution:17

var getNewBandNames = function(prefix) {
  var seq = ee.List.sequence(1, bandNames.length());
  return seq.map(function(b) {
    return ee.String(prefix).cat(ee.Number(b).int());
  });
};

GLCM (Grey Level Co-occurrence Matrix)

1. In SNAP:

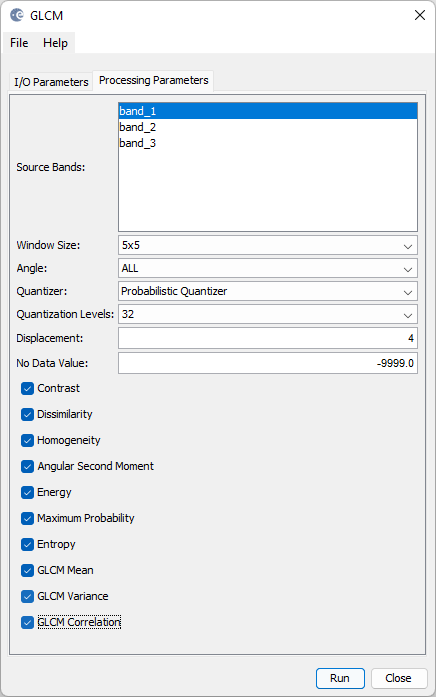

• Raster -> Image Analysis -> Texture Analysis -> Grey Level Co-occurrence Matrix

Two GLCM features were computed for each Sentinel-2 band – Correlation and Entropy – resulting in a total of GLCM 80 layers.

2. In ENVI:

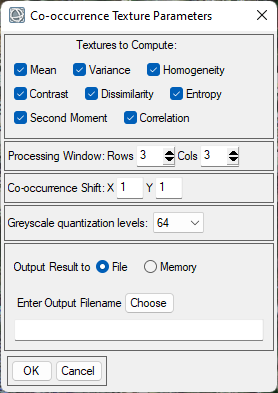

• Filters- > Texture -> Occurrence Measures

• Open file S2A_MSIL2A_20210921T025551_N9999_R032_T50_20221119T225446_super_resolved_mosaic.tif

• Choose Textures to Compute

• Choose window size, e.p 3*3

• Choose ouput location and file name

3. In Python:

• package scikit-image graycomatrix and greycoprops11

• scikit-image feature是一个强大的python可以调用的计算特征库。对于常见的图像特征可以直接调用scikit-image feature中封装好的函数来计算，速度也比自己编写的函数快12.

• 灰度共生矩阵法(GLCM, Gray-level co-occurrence matrix)，就是通过计算灰度图像得到它的共生矩阵，然后透过计算该共生矩阵得到矩阵的部分特征值，来分别代表图像的某些纹理特征（纹理的定义仍是难点）13。

• Fast Gray-Level Co-Occurrence Matrix (GLCM) by numpy. This script calculates GLCM without per pixel For loop, and works faster than GLCM on scikit-image14.

  • conda install -c anaconda scikit-image

4. In GEE:

Another method to obtain GLCM and it’s textures are using GEE (Google Earth Engine).

Codes are saving in https://code.earthengine.google.com/GLCM_test

• Run GLCM_test script and in Tasks tab, click run.

• After task submitted to Google Drive, download it to local drive. D:\DATA\LULC\01_Prepare\GEE\GLCM

• If the GeoTiff is too large, GEE converted it into several tiles15.

• In QGIS use raster tool Raster - Misscellaneous - Merge to mosaic all tiles.

Band Merge

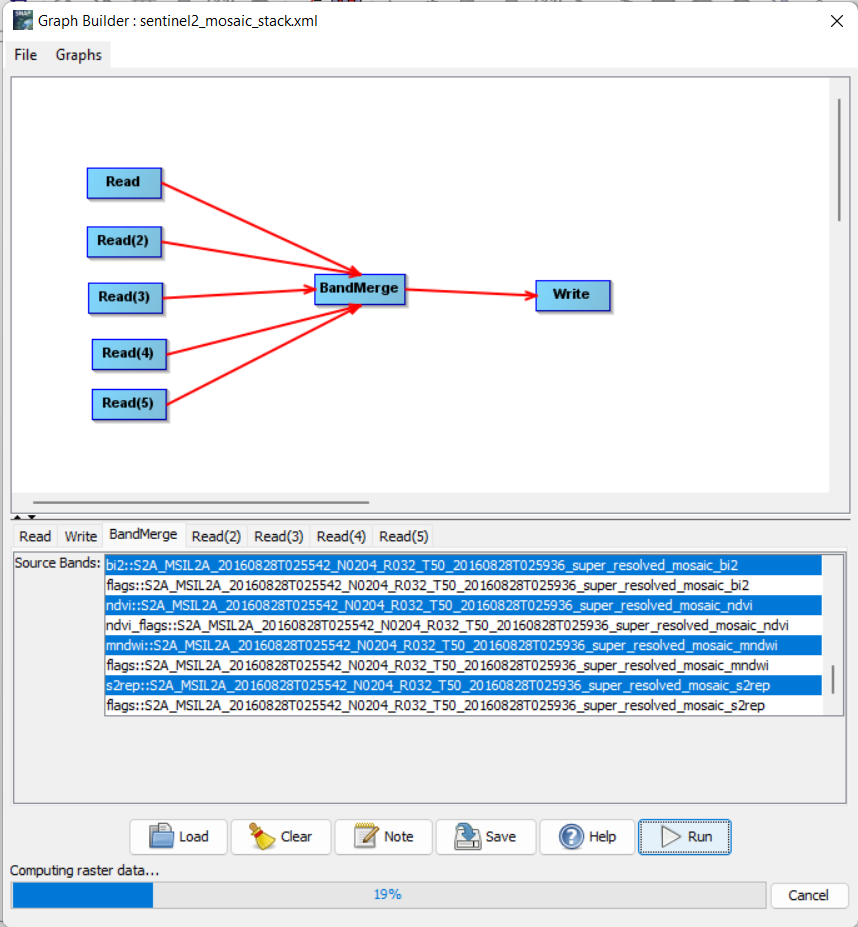

In Graph Bilder

• Read -> Band Merge -> Write

Band Select

1. Raster -> Data Concersion -> Band Select

2. Select bands without _count and _flag

3. Edit .dim file

4. Delete <Flag_Coding name="flags"> in .dim

5. Delete <Masks> in .dim

6. Delete <VALID_MASK_TERM>B2_count &gt; 0</VALID_MASK_TERM> for all bands in .dim

DEM and slope

1. SRTM V3 DEM
   • Extent of select and stack dataset
     • southBound 34.01983866595984 ascii
     • northBound 34.58781619824366 ascii
     • eastBound 117.7167699067148 ascii
     • westBound 116.81001605948157 ascii
   • In ArcGIS Pro
     • mosaic to New Raster
     • Extent same as layer xuzhou_center_dissolve

Process in SNAP

• Prepare stacked dataset with all Sentinel bands, indexs and DEM.

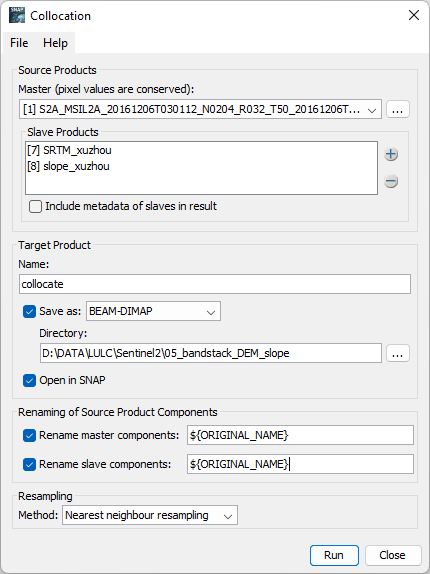

When stack sentinel bands with DEM, we use collocation to porcesss.

Band Merge is not the correct operator to bring two products together. I recommend the Collocation tool1.

Training dataset

Stacked dataset

1. Sentinel-2A

   • 10m: B2 B3 B4 B8
   • 20m: SRB5 SRB6 SRB7 SRB8A SRB9 SRB11 SRB12

2. SRTM V3 DEM

   • Extent of select and stack dataset
     • southBound 34.01983866595984 ascii
     • northBound 34.58781619824366 ascii
     • eastBound 117.7167699067148 ascii
     • westBound 116.81001605948157 ascii
   • In ArcGIS Pro
     • mosaic to New Raster
     • Extent same as layer xuzhou_center_dissolve

3. slope

4. Indexs

   • NDVI

   • MNDWI

   • REPI

   • BI2

   • NDBI = (SWIR - NIR) / (SWIR + NIR)

     • Sentinel2A SWIR: B11, NIR: B8A (in SNAP: (SRB11 - SRB8A) / (SRB11 + SRB8A))
     • Landsat 8 SWIR:B6, NIR:B5

   • EVI2
     Raster Calculator Expression in QGIS: 2.5 * ( "20210921_fullstack_rename@4" - "20210921_fullstack_rename@3" ) / ( "20210921_fullstack_rename@4" + 2.4 * "20210921_fullstack_rename@3" + 1

   • NDRE
     Raster Calculator Expression: (NIR - RED) / (NIR + RED)

5. Texture Analysis

Gray-Level co-occurrence matrix (GLCM)

• Bands_GLCM

• PCA_GLCM

To combine all PCA_GLCM bands into one, we process all PCA_GLCM output in QGIS.

• use split image tool from Orfeo toolbox21.

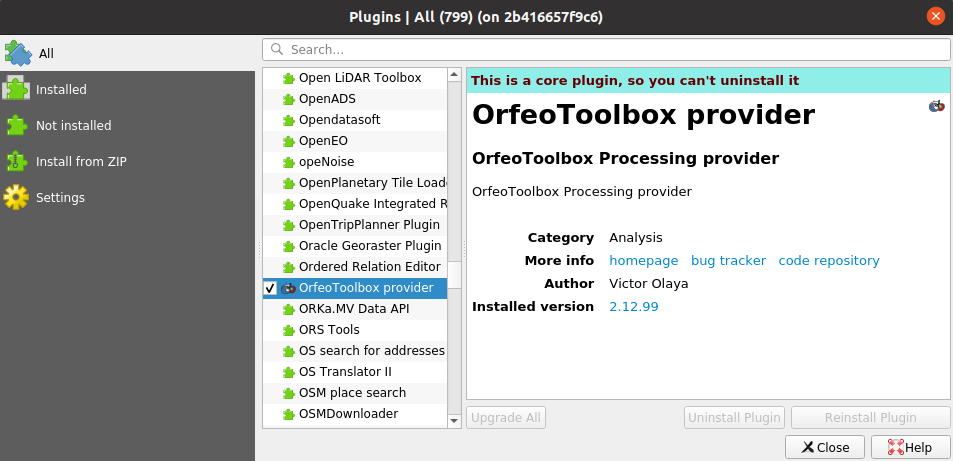

OTB Applications are fully integrated in QGIS since QGIS 3.8. You can configure OTB for QGIS. Since QGIS 3.22: the plugin is not activated by default. It should be activated in the plugins settings (Plugins/Manage and Install Plugins... toolbar). The plugin should then be configured as detailed in the QGIS documentation (see the links provided above).

You can see OTB under 'Providers’22:

• Expand OTB tab
• Tick Activate option
• Set OTB folder. This is location of your OTB installation.
• Set OTB application folder. This is location of your OTB applications. <OTB_FOLDER>/lib/otb/applications
• Click ;ok’ to save settings and close dialog. If settings are correct, you will have OTB algorithms loaded in Processing toolbox

• Load all PCA_GLCM image in QGIS

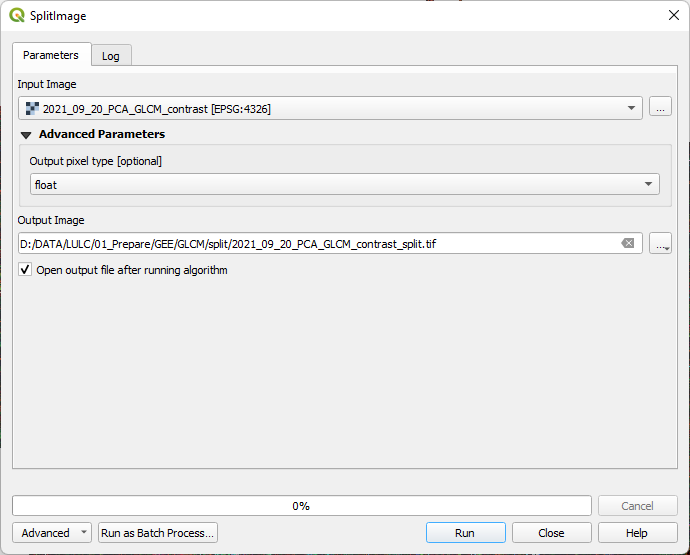

• In Processing - Toolbox - OTB - Image Manipulation - SplitImage

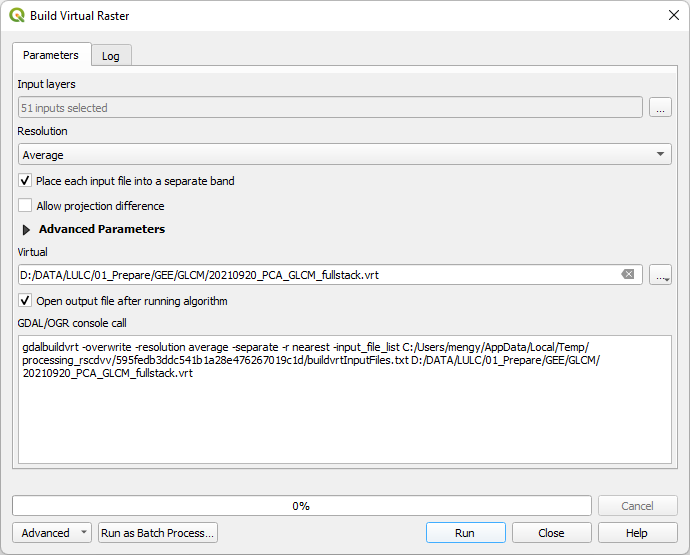

• Builds a VRT (Virtual Dataset) that is a mosaic of the list of input GDAL-supported rasters. With a mosaic you can merge several raster files23.

Raster - Miscellaneous - Build Virtual Raster

• Get fullstack raster imfomations

Raster - Miscellaneous - Raster Information

• Rename band names in fullstack.vrt

There is no way to name bands in QGIS while merging24.

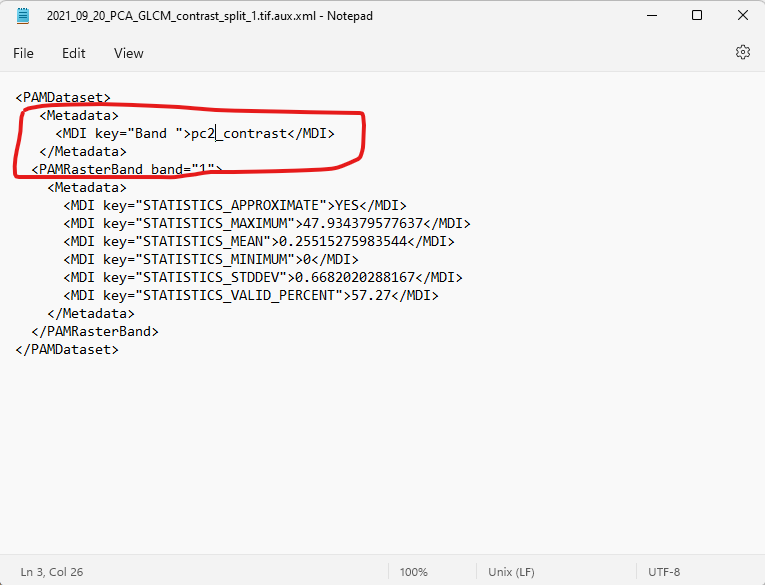

But it can be done after the file is created, by editing their .aux.xml file. It works for both .tif and .img files, as far as I’ve researched.

The solution is to include after each <PAMRasterBand band="1">, <PAMRasterBand band="2">, etc, a subelement <Description>YourBandName</Description>. I haven’t tested it for VRT datasets, but the link at the end suggests that it should be the same procedure.

For vrt files:

You can still put then again by editing the merged .vrt and adding the <Metadata> <MDI key="Band">LandsatBand X</MDI> </Metadata> at appropriate place25.

Use Plugins: Install plugin Rename bands for QGIS26!

• Export renamed vrt to geotiff

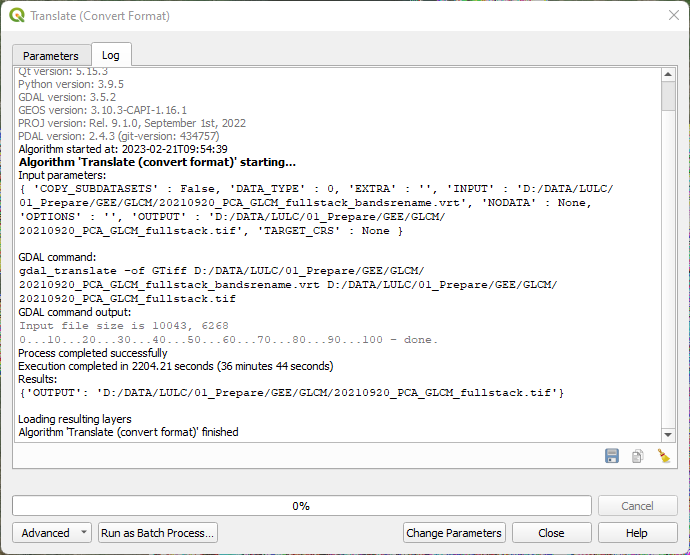

To output a compressed tif, use the Processing Toolbox -> GDAL -> Translate (Convert Format) and specify High compression in the Advanced parameters -> Additional Creation options -> Profile27

• Repeoject to EPSG:32650

Raster - Projections - Warp

Set option for Nodata Value to 0 and Output file resolution to 10

6. Roads map

We use roads map extracted from OSM D:\DATA\LSS\Roads\OSM\Roads_xuzhou_OSM.shp and process in QGIS.

• Vector - Data Managment Tools - Reproject Layer

• Raster - Conversion - Rasterise (Vector to Raster)

• Layer Properties - Transparency - Add Values Manually - From 0 to 0 set 100

List of stacked bands:

Nr.	Band
1	B2
2	B3
3	B4
4	B5
5	B6
6	B7
7	B8
8	B8A
9	B9
10	B11
11	B12
12	NDVI
13	NDRE
14	EVI2
15	BI2
16	MNDWI
17	NDBI
18	DEM
19	slope
20	aspect

1. Remove s2rep due to low performance.

   • In QGIS, GDAL -> Raster conversion -> Rearrange bands

2. Add Aspect bands using DEM

Final Processing Layers

1. Fullstack @ D:\DATA\LULC\01_Prepare\Sentinel2\07_Final_outputs\20210921_fullstack.tif

2. PCA_GLCM @ D:/DATA/LULC/01_Prepare/GEE/GLCM/clip/20210920_PCA_GLCM_fullstack_resize.tif

3. Ground Truth @ D:/DATA/LULC/04_Validation/ESRI_10m/50S_20210101-20220101.tif

4. Clip Raster by Extent - Rename - Resize to (8187,6239)

5. Fullstack @ D:/DATA/LULC/02_Training/03_Final_Input/20210921_fullstack_xz.tif

6. PCA_GLCM @ D:/DATA/LULC/02_Training/03_Final_Input/20210921_PCA_GLCM_xz.tif

7. Ground Truth @ D:/DATA/LULC/04_Validation/ESRI_10m/20210921_GroundTruth_xz.tif

Process in ArcGIS

Using SRTM DEM to generate slope in Xuzhou.

Process in SNAP

• Prepare stacked dataset with all Sentinel bands, indexs and DEM.

When stack sentinel bands with DEM, we use collocation to porcesss.

Band Merge is not the correct operator to bring two products together. I recommend the Collocation tool1.

Training Dataset

Google Earth Pro + Sentinel2 + Land Use Map 2014 + Bing Map

Create training dataset in QGIS.

Land-cover types:
- Build-up (red)
- Farmland (green)
- Forest (cyan)
- Meadow (yellow)
- Water (blue)
- Other land (black)

Get Imagery metadata for Bing Map

Bing Virtual Earth data can be added in QGIS using HCMGIS plugin, but this dataset is without date information. For better visual interpretation of satellite and aerial imagery, we need to obtain metadata for Bing Map. Here is the solution.

Use the following URL templates to get metadata for imagery that is hosted by Bing Maps. The imagery metadata returned includes URLs and dimensions for imagery tiles, ranges of zoom levels, and imagery vintage information8.

https://dev.virtualearth.net/REST/v1/Imagery/Metadata/{Aerial}?key={BingMapsKey}

Error: Access was denied.

I pasted this example URL from your Imagery Metadata webpage: https://dev.virtualearth.net/REST/V1/Imagery/Metadata/Aerial/40.714550167322159,-74.007124900817871?zl=15&o=xml&key={BingMapsKey}.

It returned a 401 error code ‘Access was denied. You may have entered your credentials incorrectly, or you might not have access to the requested resource or operation.’

Solution:

Created a [key](https://www.bingmapsportal.com/Account), using the following details:
Application name: give it the name you would like
Application URL: https://www.bing.com/maps/
Key type: Basic
Application type: Dev/Test

Url to get imagery metadata: https://dev.virtualearth.net/REST/V1/Imagery/Metadata/Aerial/34.3788,117.280379?zl=16&o=xml&key=AtlVktKCspTDTH1P31NUy7hkyx8d202D7UiTaarrJv96IU2v8bzk_vJeH3D_C93b

<ImageryMetadata>
<ImageUrl>http://ecn.t0.tiles.virtualearth.net/tiles/a1321021323320110.jpeg?g=13239</ImageUrl>
<ImageWidth>256</ImageWidth>
<ImageHeight>256</ImageHeight>
<ZoomMin>16</ZoomMin>
<ZoomMax>16</ZoomMax>
<VintageStart>2011-11-12</VintageStart>
<VintageEnd>2011-11-12</VintageEnd>
</ImageryMetadata>

Get Imagery metadata for Google Satellite

Obtain imagery date from visual interpretation in Google Earth Pro: 2022-09-05

Google API not available yet, maybe use this way later.

Create Land Type shapefile

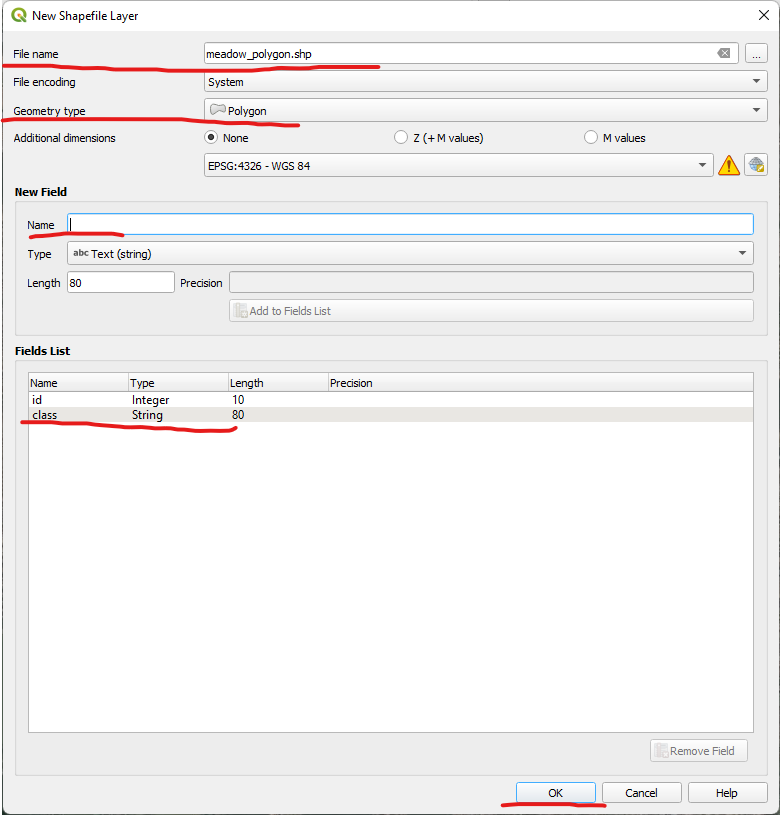

1. Create New Shapefile Layer

   • Build-up

   • Farmland

   • Forest

   • Meadow

   • Water

2. 2. Reproject

Vector -> Data Management Tools -> Reproject Layer

3. Merge

Vector -> Data Management Tools -> Merge Vector Layers

Ground Truth Data

Sentinel-2 10m land cover time series

This layer displays a global map of land use/land cover (LULC) derived from ESA Sentinel-2 imagery at 10m resolution. Each year is generated from Impact Observatory’s deep learning AI land classification model used a massive training dataset of billions of human-labeled image pixels developed by the National Geographic Society. The global maps were produced by applying this model to the Sentinel-2 scene collection on Microsoft’s Planetary Computer, processing over 400,000 Earth observations per year9.

Class definitions

1. Water
   Areas where water was predominantly present throughout the year; may not cover areas with sporadic or ephemeral water; contains little to no sparse vegetation, no rock outcrop nor built up features like docks; examples: rivers, ponds, lakes, oceans, flooded salt plains.

2. Trees
   Any significant clustering of tall (~15 feet or higher) dense vegetation, typically with a closed or dense canopy; examples: wooded vegetation, clusters of dense tall vegetation within savannas, plantations, swamp or mangroves (dense/tall vegetation with ephemeral water or canopy too thick to detect water underneath).

3. Flooded vegetation
   Areas of any type of vegetation with obvious intermixing of water throughout a majority of the year; seasonally flooded area that is a mix of grass/shrub/trees/bare ground; examples: flooded mangroves, emergent vegetation, rice paddies and other heavily irrigated and inundated agriculture.

4. Crops
   Human planted/plotted cereals, grasses, and crops not at tree height; examples: corn, wheat, soy, fallow plots of structured land.

5. Built Area
   Human made structures; major road and rail networks; large homogenous impervious surfaces including parking structures, office buildings and residential housing; examples: houses, dense villages / towns / cities, paved roads, asphalt.

6. Bare ground
   Areas of rock or soil with very sparse to no vegetation for the entire year; large areas of sand and deserts with no to little vegetation; examples: exposed rock or soil, desert and sand dunes, dry salt flats/pans, dried lake beds, mines.

7. Snow/Ice
   Large homogenous areas of permanent snow or ice, typically only in mountain areas or highest latitudes; examples: glaciers, permanent snowpack, snow fields.

8. Clouds
   No land cover information due to persistent cloud cover.

9. Rangeland
   Open areas covered in homogenous grasses with little to no taller vegetation; wild cereals and grasses with no obvious human plotting (i.e., not a plotted field); examples: natural meadows and fields with sparse to no tree cover, open savanna with few to no trees, parks/golf courses/lawns, pastures. Mix of small clusters of plants or single plants dispersed on a landscape that shows exposed soil or rock; scrub-filled clearings within dense forests that are clearly not taller than trees; examples: moderate to sparse cover of bushes, shrubs and tufts of grass, savannas with very sparse grasses, trees or other plants.

Data Visualization

To dispaly all sentinel bands in python, we use:

As we discussed, the data contains 12 bands. let’s visualize each band using the EarhPy package. the plot_bands() the method takes the stack of the bands and plots along with custom titles which can be done by passing unique titles for each image as a list of titles using the title= parameter10.

Preprocessing

Standardization is another scaling technique where the values are centered around the mean with a unit standard deviation. This means that the mean of the attribute becomes zero and the resultant distribution has a unit standard deviation. The scaled data is divided into train and test data in the ratio of 30:70. The below code is used to scale and split the data10.

from sklearn.preprocessing import StandardScaler
from sklearn.model_selection import train_test_split

x = np.moveaxis(arr_st, 0, -1)

X_data = x.reshape(-1, 12)
scaler = StandardScaler().fit(X_data)
X_scaled = scaler.transform(X_data)

# Split data
X_train, X_test, y_train, y_test = train_test_split(X_scaled, y_data.ravel(),
                                                    test_size=0.30, stratify = y_data.ravel())
print(f"X_train Shape: {X_train.shape}\nX_test Shape: {X_test.shape}
        \ny_train Shape: {y_train.shape}\ny_test Shape:{y_test.shape}")

Visualizetion map of KNN

Let’s visualize the classification map of K-NNC, the below code is used to predict the labels of the Sundarbans data and plot the data using plot_bands() method from the earthpy package10.

# Visualize Classification Map of K-NNC

ep.plot_bands(knn.predict(X_scaled).reshape((954, 298)),
              cmap=ListedColormap(['darkgreen', 'green', 'black',
                                   '#CA6F1E', 'navy', 'forestgreen']))
plt.show()

Sentinel-2 10 m Land Use/Land Cover Time series Downloader

This application provides access to individual 10-meter resolution GeoTIFF scenes for all land masses on the planet, for each year from 2017-20213.

All scenes for each year are also available to download as a zip file: 2017, 2018, 2019, 2020, 2021.

Each annual zip download is approximately 60 GB of global extent.
